ARTIFACT / INTERACTIVE WATCH STUDY / THREE.JS

Seventeen thousand two hundred eighty

The movement rate became the name.

An unsigned two-hand watch with a cool-mist dial over a visible movement. Hide the dial to inspect the train, follow its motion, or separate the assembly into layers. The mechanism remains the center of the study.

Beat
2.4 Hz
Rate
17,280 vph
Display
Two hands
Assembly
Eight layers
17280 with a translucent cool-mist dial, blue hands, angular graphite case, and charcoal strap
Cool-mist dial

The current mist dial reveals the movement beneath a quieter two-hand display.

PUBLISHED PROJECT CAPTURE

01 / THE OBJECT

A dial over the mechanism. An inspection view beneath it.

The current presentation brings a translucent cool-mist dial and restrained sunburst to the angular graphite case. Blue hands remain legible over the mechanism. The Dial control removes the dial surface for a closer reading of the ratio-linked going train and lever escapement.

2.4 Hz · 17 280 · TWO HANDS

MOVEMENT RATE / THE RATE IS THE NAME

02 / VIEW STATES

The object, then the layered assembly.

The hero shows the current dial. This published exploded view preserves the earlier full-skeleton presentation and makes the assembly legible. In the live build, the dial travels with the display layer; the camera remains free to orbit.

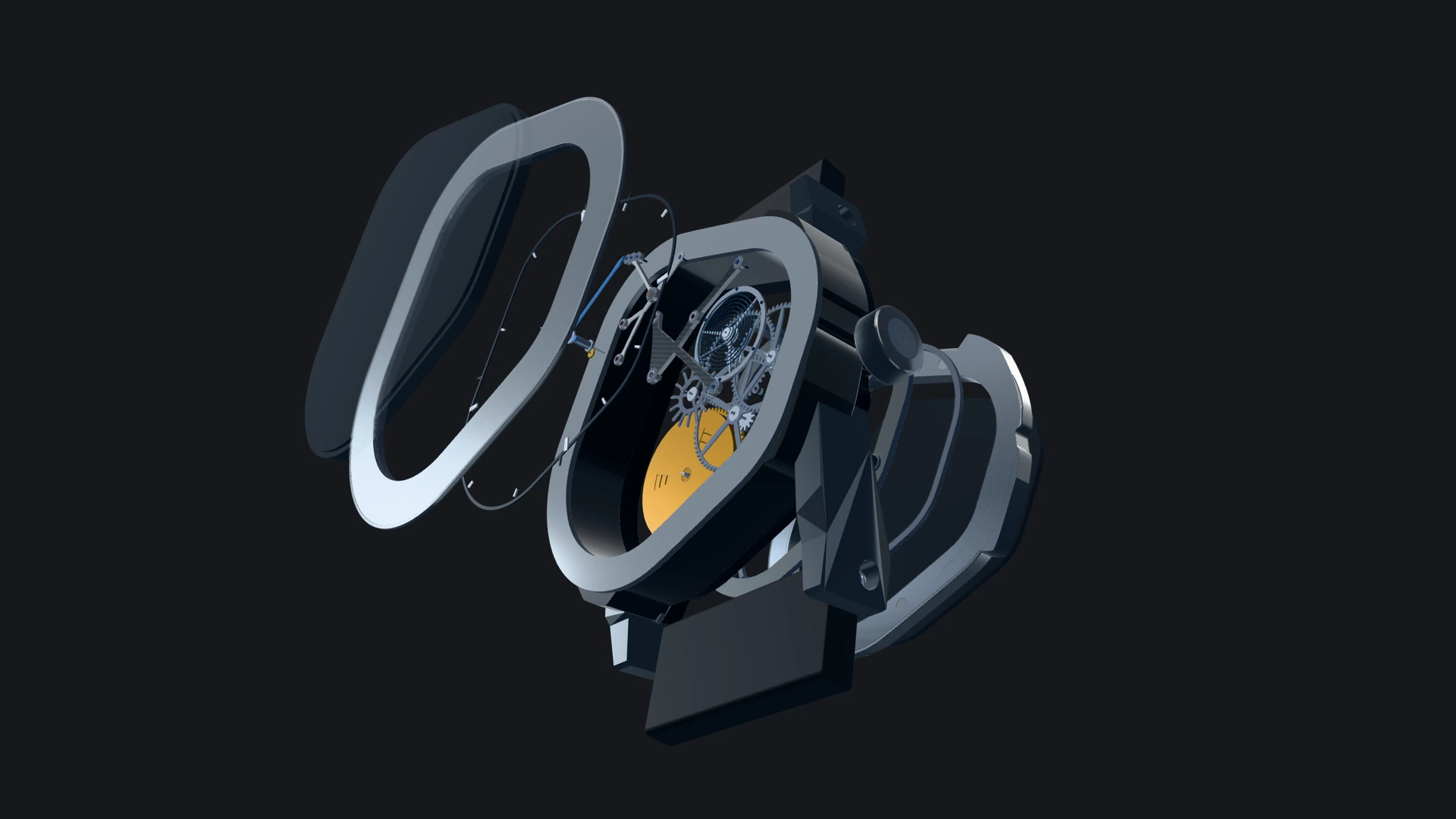

Exploded 17280 watch assembly with eight layers separated along the watch axis
02 / Exploded / archive

Published rendering of the earlier full-skeleton design. The current live build adds the mist dial to the display layer.

03 / ASSEMBLY

An eight-layer axial explanation.

Exploded mode preserves the modeled layer order and grouping while making enclosure, display, upper works, lower structure, and rear retention readable as a stack. This is an inspection arrangement, not a physical service sequence.

  1. 01Front sapphire optical body
  2. 02Front bezel and carrier
  3. 03Mist dial, chapter, hands, and display drive
  4. 04Upper bridges, bearings, and fasteners
  5. 05Mainplate, posts, and lower bearings
  6. 06Holder and rear carrier
  7. 07Caseback and polish step
  8. 08Rear sapphire optical body

04 / ENTER THE MODEL

Orbit it. Separate it. Read it from the rear.

Start with the whole watch, hide the dial, or enter the close-up studio. The live study offers named cameras, Assembled and Exploded states, crystal and ruby display controls, pause, reset, and keyboard shortcuts. It requires JavaScript and WebGL; this page’s stills and links remain available without JavaScript.
